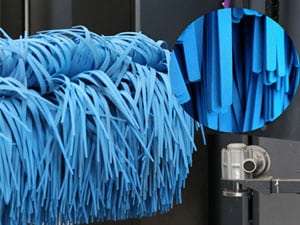

EVA soft brushes
Soft brush material for contact washing. Routine inspection and cleaning belong in your operating plan.
Rollover car wash
machine S3.
A five-brush rollover machine
with programmed gantry passes.
High-pressure spraying, 5 cleaning brushes and vehicle sensors. Plan S3 around your bay dimensions, vehicle range and selected wash program.
Published equipment length: 2.85 m.
Allow an 11 m installation reference for gantry travel.
See S3
in operation.
Watch the moving gantry and brush washing in the original S3 product video, shown without sound.
Five brushes
on one moving gantry.
S3 combines top, vertical and skirt brushes on a gantry that travels around the parked vehicle.
- Top brush
- 1
- Vertical brushes
- 2
- Skirt brushes
- 2
Need a different footprint or gantry appearance? Compare the rollover range.
From prewash
to air drying.
The gantry makes programmed passes along the rails.
Prewash
Water loosens surface dirt.
Foam
Detergent prepares the vehicle for brushing.
Brush wash
5 brushes clean the vehicle surfaces.
Rinse
Water rinses away detergent.
Water wax
Wax is applied in the configured program.
Air dry
Fans remove remaining surface water.
Look inside
the wash system.
Brush material, programmed control and fan drying work together through the wash cycle.
Programmed control
The control system coordinates gantry travel and wash stages.

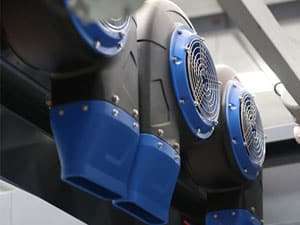

Fan drying
Air-drying hardware follows the washing stages. The fan configuration sets the electrical load.
Gantry size
and travel space.
The 2.85 m machine body travels within a larger installation area. Plan vehicle access and rail travel alongside the equipment.
| Model | Automatic rollover car wash machine S3 |
|---|---|
| Brush configuration | 5: 1 top, 2 vertical, 2 skirt |
| Equipment dimensions (L × W × H) | 2.85 × 3.85 × 3 m |
| Installation length reference | 11 m |
| Installation width & clearance | Confirm against the final layout drawings |
| Maximum vehicle dimensions (L × W × H) | 6 × 2.1 × 2.1 m |
| Vehicle types | Cars, jeeps and minivans with fewer than 7 seats |
| Wash cycle reference | 2–5 minutes per car; program dependent |
| Water use reference | 60–80 L per car; program dependent |
| Shampoo & water wax use | 10–30 mL per car |
| Electricity use reference | 0.6 kWh per car |
| Electrical supply | 380 V / 50 Hz, 20 kVA |
| Total power | 25 kW |
| PLC control | Siemens (Germany), stable with a low failure rate |
|---|---|
| Brushes | EVA soft brushes with self-cleaning; they keep their shape and are gentle on paint |
| Fan drying | Drying power adjusts to the vehicle; drying rate over 95%; turbine fans with over 60% less noise |

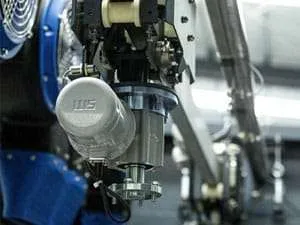

| Motor reducers | SITI (Italy), fully enclosed, IP68 waterproof, service life over 20 years |

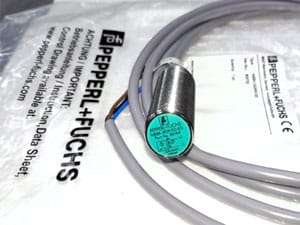

| Position sensors | Pepperl+Fuchs (Germany), IP69K waterproof; measure vehicle travel and position |

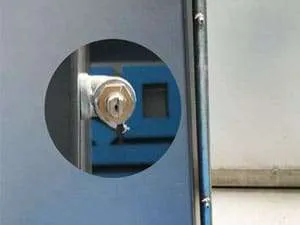

| Pipes & nozzles | Stainless steel |
Published reference specifications. Final dimensions, utilities and configuration are fixed in the project drawings and quotation.
Before you
choose S3.
Answers about clearance, wash capacity and installation.
How does the S3 rollover car wash machine work?
The vehicle stays in a wash bay while the gantry travels along rails. The selected program coordinates spraying, brush cleaning, rinsing and drying. Vehicle positioning and clearance must be checked before operation.
How much space does S3 need?
The published machine dimensions are 2.85 × 3.85 × 3 m. The published installation length reference is 11 m. The final drawings give the width and height; your site also needs approach, waiting, exit and maintenance access.
How are the 5 brushes arranged?
The published S3 configuration includes 1 top brush, 2 vertical brushes and 2 skirt brushes. The quotation gives the washing stages and drying hardware.
Can S3 wash SUVs and MPVs?
Check your vehicles against the published maximum dimensions of 6 m long, 2.1 m wide and 2.1 m high. Include mirrors, roof equipment and other accessories.
How does S3 differ from S1?
Both published configurations have 5 brushes. S3 has a 2.85 m equipment-body length compared with 2.2 m for S1, and its equipment dimensions differ. A bay sized for one may not fit the other.
How long does an S3 wash take?
The published wash-cycle reference is 2–5 minutes per car. The selected program and configuration affect the duration. Include entry, positioning and exit time when estimating site throughput.
What should I send for an S3 quotation?
Send the installation country, usable bay dimensions, vehicle range and expected daily volume. Include water, drainage and power details if available.
