Touchless car wash machine​

Touchless car wash machine manufacturer, free customized touchless car wash system, support door-to-door installation, permanent after-sales service-SHINEWASH car wash machine

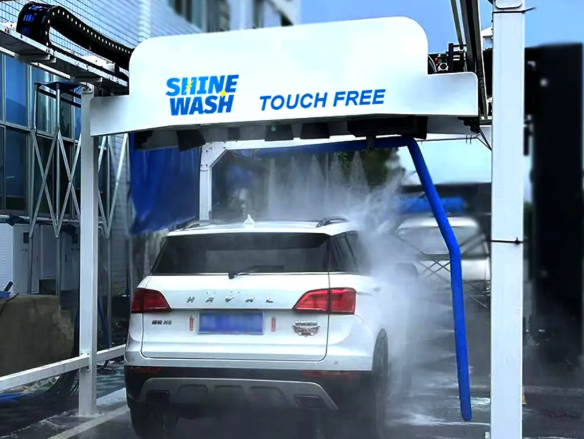

SHINEWASH’s Touchless car wash machine, with advanced sensing technology, the machine can detect the size and shape of any vehicle and adjust its settings accordingly. This touchless car wash uses high-pressure water jets and detergents to provide a thorough cleaning while minimizing the risk of vehicle damage.

Touchless-car-wash-machine-site-design

56+

Countries​

1000+

Happy Customers ​

50000m²

Factory area​

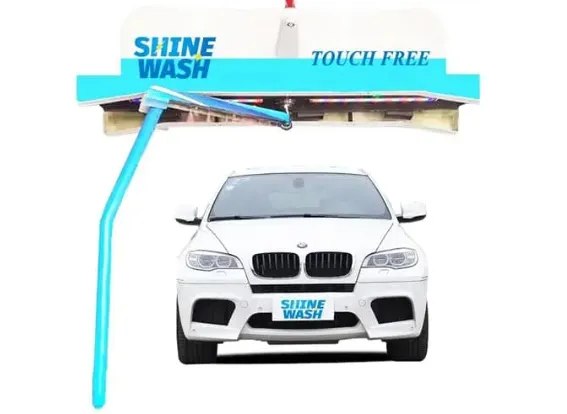

Touchless car wash machine K3​

Touchless car washmachine K3

Machine Size (m) (L*W*H):7.0*3.5*3.0
Installation Size (m) (L*W*H):7*3.5*3.2
Max. Car Size (m):L5.6*W2.2*H2.1
Fan Drying Motor: 3 groups*4KW
The brand of high- pressure pump: PINFL Imported from Germany
Water Pressure: 100 Kg(100Bar)
Proportioning pump: 3 Sets
Lightbox sign: A sign showing how to wash a car
Foaming Mode: Scrub free foam, Magic Foam waterfall Water Wax
Chassis and hubcleaning: Yes

Touchless car wash machine K6

Touchless car washmachine K6

Machine Size(m)(L*W*H): 7.5*3.7*3.4
Installation Size (m)(L*W*H): 8*4*3.5
Max. Car Size (m): L6.0*W2.2*H2.1
Fan Drying Motor: 4 groups*5.5KW
The brand of high-pressure pump: PINFL Imported from Germany
Hight Pressure Water Pressure: 100Kg(100Bar)
Proportioning pump: 4 sets
Lightbox sign: LED 7″ Display,car wash animation, remaining time,voice prompt
Foaming Mode: Scrub free foam,Normal foam,Magic Foam waterfall,Water Wax
Chassis and hub cleaning: Yes

Touchless car wash machine K9

Touchless car wash machieng K9

Machine Size(m)(L*W*H): 7.75*3.7*3.4
Installation Size (m)(L*W*H): 8*4*3.5
Max. Car Size (m): L6.3*W2.2*H2.1
Fan Drying Motor: 4 groups*5.5KW
… …
Lightbox sign: “LED 7″” Display
K9 unique features:
1. Enhanced cleaning of front and rear(intelligent)
2. Automatic clean rearview mirror(intelligent)
3. Automatic detection of vehicle width(intelligent)
4.360 Cross Arm Translation System

Main Accessory

Main Parts Brand and Place of Origin

NameBrandSpecificationPlace of Origin
Control System PLCMitsubishiFX3U-80MR/ES-AJapan
Photoelectric sensorBannerS186E/S18SN6RAmerica
Proximity switchPepperl+FuchsM12/M18/M30Germany
Frequency ConverterSiemens6SL3210-5BE17-5UVOGermany
AC ContactorSiemens3RT6016-1AN22/3RT6018-1AN22Germany
Heat ProtectorSiemens3RU6116-1AB0/1CB0/1GB0/4AB0Germany
Switching Power SupplyMean WellRSP-320-24Taiwan
Terminal BlocksWeidmullerUK-6N/UK-5NGermany
Terminal BlocksNanouUKK5Zhejiang
Pneumatic Electromagnetic ValveAirTAC4V210-08-B terminal type DC24V PTTaiwan
Waterproof Motor ReducerSITI/ASJ1:50/1:60/1:15/1:30-0.37—1:60-0.55Italy/China
FanYongcheng5.5KWGuangdong
Water PumpDayuan3-96Zhejiang
Current DetectorQidianMK1526   AC0-5A/4-20MA   power supply 24VAnhui
Signal IsolatorQidianGLK-11 /4-20MA/4-20MA  power supply 24VAnhui
Solenoid Valve for WaterYongchuangYCD21-15GBN-S91BNingbo
Touch Display ScreenWeinviewMT6071iETaiwan
Air CylinderAirTACM32*125Taiwan
RelayWeidmullerDRM270024LGermany

Main Configuration

Main System

1Integral hot-dip galvanized steel main frame15Intelligent copy current top brush system
2Module design, mortise and tenon structure16New rack drive unencumbered side arm system
3Coupling conversion transition rotation system17High quality anti-kneading pipe and wire/stainless steel accessories
4Specially thickened bearing, precision rotating chain18Pressure resistant and flexible high pressure water pipe
5International famous brand electric and pneumatic system control center19LED signal light and display system
6Triple photoelectric protection 180 degree touch anti-collision Technology20Anti freezing and drainage function in winter
722KW fixed air drying fan21
Free switching function of multiple wash modes
8Intelligent variable frequency speed control22Automatic high pressure water system
9Intelligent proportioning of foam and water wax23Water circulation system
10HD large screen embedded touch screen operation interface (central control and operating system)24Self protection system
11Bonner photoelectric detection system25Intelligent anti-collision system
12High performance Siti waterproof motor, reducer26Fault alarm and automatic processing system
13Silent stainless steel high pressure centrifugal pump27Remote control parts operating system
14Stainless steel waterproof sealing walking wheel28Emergency stop system of the whole machine

Advantages

New Frame Design

New Frame Design

The overall frame of the equipment is first treated with high-temperature phosphating and hot galvanizing, and then with paint on the surface, which is corrosion-resistant and has super rust resistance. The main frame is made of high-quality normalized steel plates thickened by more than 5mm. The plates are accurately positioned by laser cutting, and then folded, shaped, sandblasted, galvanized, and painted, and assembled by mortise and tenon splicing. The whole machine is of standard modular design, sturdy and never deformed; The rust prevention process is first phosphated and galvanized, and the external high-temperature automobile paint baking absolutely ensures that the service life of the body exceeds 15 years.

Imported-Quality-EVA-Brush-

Imported Quality EVA Brush

Solid, non porous, soft and safe, no damage to paint, no sediment, no water absorption, not easy to twine, anti-aging, wear-resistant. The car body and tire parts are respectively configured with soft and hard brushes with different flexibility, and completely wrapped cleaning, it can not only ensure that the paint is not damaged, but also thoroughly clean the hub and other parts that are easy to accumulate dirt. The service life can reach 400,000 times. If 100 cars are washed every day, 36500 times a year, the service life is more than 10 years.

New Intelligent Air drying Control System

New Intelligent Air drying Control System

Shinewash car wash machine adopts a 4-fan fixed air drying system, which can automatically adjust the air drying power according to the vehicle model, reducing power consumption and saving energy under the condition of ensuring the air drying rate of more than 95%. The main body of the fan adopts turbine type, with noise reduction of more than 60%.

Industry Leading Cleaning Effect

Industry Leading Cleaning Effect

Shinewash car washing machine is equipped with the automatic spraying function of car washing liquid and water wax, and the brush can automatically change its posture with the car body to achieve 360 degree non dead angle cleaning. The brush is made of imported materials without damaging the car paint.

Program Control, 24-hour Business Unattended

Program Control, 24-hour Business Unattended

Support remote control, program scanning and startup, and can be completely unattended and open for 24 hours. At the same time, we provide customers with platform customization services, and develop special car washing control platforms and programs for customers.

PLC Remote Control System

Fully automatic Mitsubishi PLC computer control system, faster operation speed, lower failure rate, and can be updated remotely, remote monitoring, remote diagnosis, remote control eiminate the need for a service technician and reduce the downtime and maintaince costs.

Smart Water Recycling System

Car wash water process introduction

The intelligent water circulation system plays a very important role in the car washing machine. It can not only improve the cleaning efficiency and reduce the waste of water consumption, but also reduce the negative impact on the environment. Here’s how important a smart water recycling system is to a car wash system and how important it is to the environment

  • Water saving and emission reduction
  • Guarantee the health and safety of users
  • Resource recycling
  • Improve efficiency and reduce costs
  • Reduce environmental pollution
  • Enhance brand recognition
water-circulatory-system
Car-Washing-Machine-Water-Circulation-System

SHINEWASH automatic car wash koisk payment system

SHINEWASH-fully-automatic-car-wash-machine-koisk-payment-system

SHINEWASH fully automatic car wash machine provides a complete automatic payment system. From basic customer management to VIP customer service to on-site data statistics of the car wash machine, we provide a seamless and efficient process.

  • VIP card, credit card, cash, etc.
  • Customer information management
  • Car wash site information statistics

Smart IoT-Smart Cloud Remote Management System

Smart-IoT-Smart-Cloud-Remote-Management-System_
What is Smart Cloud Remote Management System?

The intelligent cloud remote management system is an intelligent Internet of Things system of the car wash machine factory, which can remotely monitor, debug and maintain the car wash equipment through the Internet.

What functions does the intelligent cloud remote management system have?

The intelligent cloud remote management system can provide functions such as real-time monitoring of the car wash machine’s running status, automatic detection of faults and providing maintenance support, data statistics and analysis.

What type of car wash system is suitable for the intelligent cloud remote management system?

Most types of car wash systems can be integrated into the intelligent cloud remote management system to achieve fully automatic, unmanned car wash services, including tunnel-type, vertical-type, drum-type, and manual car wash machines.

Why use the smart cloud to remotely manage the car wash system?

Using the intelligent cloud remote management car wash system can improve efficiency, reduce maintenance costs, improve service quality, and increase customer satisfaction. Because it can remotely control and monitor the car wash equipment operation at different locations, automatically alarm in case of a malfunction and provide remote maintenance support, while also customizing car wash solutions according to customer needs.
