Vertical spray movement
The high-pressure spray system moves automatically up and down during the selected program.
Up-and-down
touchless car wash
machine.
Touchless washing with a spray
that moves up and down.
Move high-pressure spraying up and down around the vehicle. Explore height-adaptive cleaning, programmable wash stages and the configuration that fits your vehicles and site.
Plan the vehicle envelope and spray travel together.
The installation space is about 9 × 4.3 × 3.5 m and a wash takes 3–6 minutes per car.
See the up-and-down machine
in operation.
Watch the original product video to see the equipment and vehicle washing. Video loads when you press Play and stays silent.
Silent playback
The spray moves
with vehicle height.
Review the height-adaptive spray format and the operating functions for your selected equipment.
Height adaptation
Spray position adapts to vehicle height.
Upper & side coverage
The spray covers roofs, windows and side panels in the chosen wash sequence.
Programmed control
The published configuration uses intelligent PLC control to coordinate wash stages.
Vehicle positioning
Automatic positioning guides the car to the stopping point.
Lower-body & drying options
Chassis cleaning, wheel-hub cleaning and air drying are available.
From prewash
to air drying.
The spray system runs the selected wash program around the vehicle.
Chassis & wheels
Dedicated cleaning functions address the lower vehicle areas.
Cleaning agents
The spray system applies the configured cleaning solution.
Foam
The selected foam mode applies detergent.
High-pressure rinse
Water jets rinse the vehicle surfaces.
Water wax
Wax is applied in the configured program.
Air dry
The fan system removes remaining surface water.
Look inside
the wash system.
See original up-and-down product images of the chassis cleaning, spray movement and drying functions.

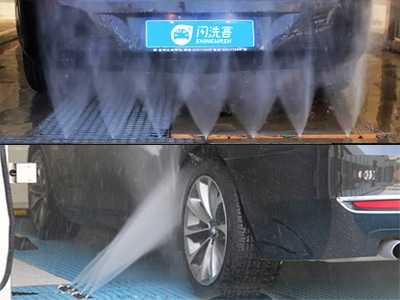

Chassis & wheel cleaning
Lower-body cleaning hardware can be added to your wash program.

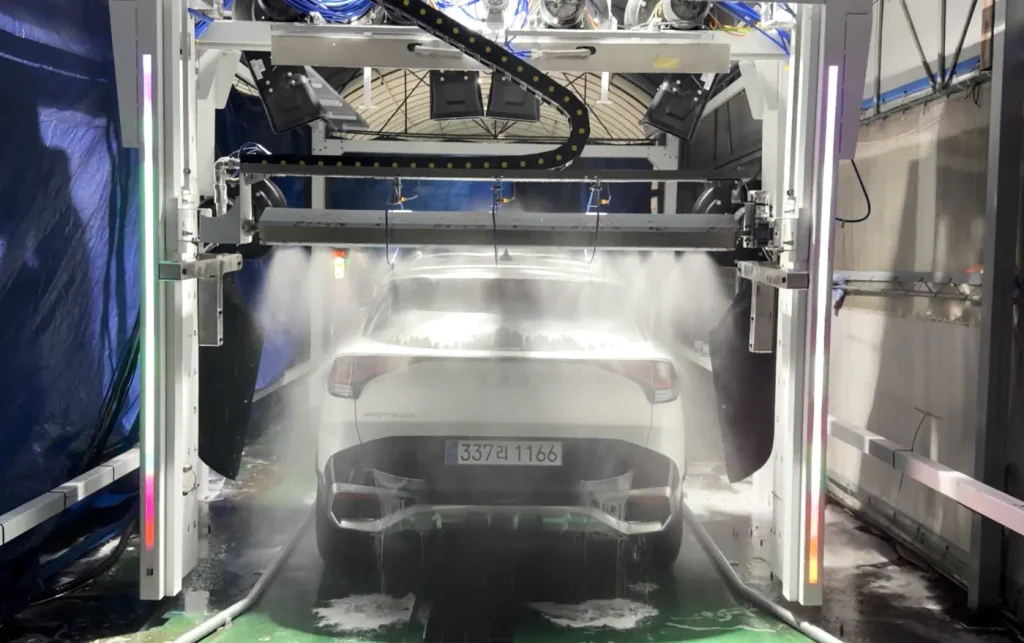

High-pressure spraying
Water jets and detergents provide brush-free cleaning. Match water quality and chemical dosing to the recommended settings.
Fan drying
The fan configuration sets the drying stage and the total electrical demand.
Your wash bay
and its utilities.
Check vehicle clearance, spray-system travel and water supply alongside the machine dimensions. Final installation drawings determine the required space.
| Equipment | Up-and-Down Touchless Car Wash Machine |
|---|---|
| Washing format | Touchless / brush-free |
| Machine dimensions (L × W × H) | 8.5 × 4.14 × 3.21 m |
| Installation dimensions reference (L × W × H) | 9 × 4.3 × 3.5 m |
| Maximum vehicle dimensions (L × W × H) | 5.5 × 2.4 × 2.3 m |
| Vehicle types | Sedans, SUVs, MPVs and similar vehicles |
| High-pressure spray system | Automatically moving vertical spray system |
| High-pressure pump | Pinfl (Germany), 6-stage, 22 kW / 380 V |
| Water pressure | 100 kg/cm² (about 10 MPa, 1,420 psi) |
| Chassis & wheel-hub cleaning | 13-nozzle underbody and wheel pre-wash at 130–150 bar |
| Washing stages | High-pressure water, foam, rinse, wax and drying |
| Foam | Wipe-free liquid, foam and lava foam waterfall |
| Chemical dosing | Automatic proportioning of 6 liquids |
| Drying | 6 × 5.5 kW air dryers |
| Cleaning coverage | 360° around the vehicle |
| Vehicle adaptation | Spray position adjusts according to vehicle height |
| Vehicle detection | 3D detection of vehicle size; electronic and mechanical collision avoidance |
| Smart cleaning | Enhanced front and rear cleaning; automatic rearview mirror cleaning |
| Vehicle positioning | Parking guidance and an LED prompt screen with wash progress and time |
| Control system | Siemens PLC (Germany), remote maintenance and fault records |
| Wash cycle reference | 3–6 minutes per car; program dependent |
| Water use reference | 90–140 L per car; program dependent |
| Shampoo use | 20–150 mL of each liquid per car, adjustable |
| Electricity use reference | 0.5–1.0 kWh per car |
| Water supply pipe | DN25 |
| Customization | Wash programs customized to your requirements free of charge |
Published reference specifications. Final dimensions, utilities and configuration are fixed in the project drawings and quotation.
Before you
choose this wash system.
Answers about clearance, wash capacity and installation.
How does the up-and-down touchless spray system work?
The high-pressure spray system moves vertically and adjusts its position according to vehicle height. The selected program uses water and cleaning agents, with no brushes touching the bodywork.
How does vertical spray movement differ from a fixed spray system?
Vertical movement changes the spray position around upper and side areas of the vehicle. Cleaning results depend on the vehicle condition, wash settings and chemicals.
Can it wash SUVs, MPVs and pickup trucks?
The machine takes sedans, SUVs, MPVs and similar vehicles up to 5.5 m long, 2.4 m wide and 2.3 m high. Check your largest vehicles against these limits, including mirrors and roof accessories.
How much installation space is required?
The machine measures 8.5 × 4.14 × 3.21 m and needs an installation space of about 9 × 4.3 × 3.5 m. Send your usable site length, width and height, the approach and exit routes and a sketch, and allow for drainage and maintenance access.
Are chassis cleaning, wheel-hub washing and air drying included?
Yes. A 13-nozzle underbody and wheel pre-wash runs at 130–150 bar, and six 5.5 kW air dryers dry the car at the end of the program.
What are the wash cycle, water use and electrical requirements?
A wash takes 3 to 6 minutes per car and uses 90 to 140 litres of water and 0.5 to 1.0 kWh of electricity, depending on the program. The 22 kW high-pressure pump and the dryers run on 380 V, and the water supply pipe is DN25.
Can the machine and operating options be customized?
Appearance, wash procedure, payment and remote assistance can be customized. The proposal lists the options included.
What should I send for a quotation?
Send the installation country, usable site dimensions, largest vehicles and expected daily volume. Include water, drainage and electrical details where available, plus your preferred wash and operation options. Ask for configuration, delivery, installation, training and support scope.
