Dual spray arms
Two robotic arms coordinate cleaning-agent and water spraying around the vehicle.

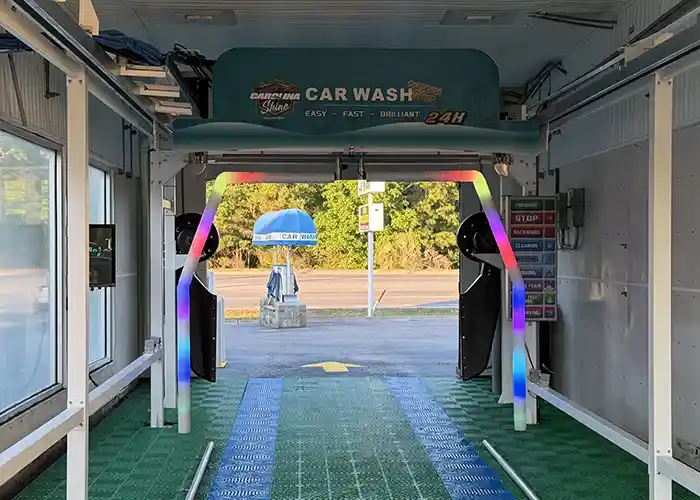

Dual arm touchless
car wash machine.
Touchless washing with
two coordinated spray arms.
Combine two spray arms, high-pressure pumps, underbody cleaning and six-fan drying in a dedicated bay. Plan the wash program, vehicle flow and utilities around your site.
Published cycle: 3–8 minutes per vehicle.
Allow extra time for entry, positioning and exit.
See the dual-arm machine
in operation.
Watch the original product video to see the equipment and vehicle washing. Video loads when you press Play and stays silent.
Silent playback
Two spray arms
and the full wash program.
Pumps, drying hardware and controls are matched to the program you plan to offer.
High-pressure pumps
Two Pinfl PT45 high-pressure pumps.
Underbody & wheels
Wheel blasters and undercarriage washing can be added to the program.
Six-fan drying
The published arrangement uses 6 × 5.5 kW blowers.
Programmed control
A Mitsubishi PLC coordinates the wash. Review the four built-in program modes.
Remote monitoring
Monitoring, fault diagnosis and remote assistance are available.
From prewash
to air drying.
The spray system runs the selected wash program around the vehicle.
Chassis & wheels
Dedicated cleaning functions address the lower vehicle areas.
Cleaning agents
The spray system applies the configured cleaning solution.
Foam
The selected foam mode applies detergent.
High-pressure rinse
Water jets rinse the vehicle surfaces.
Water wax
Wax is applied in the configured program.
Air dry
The fan system removes remaining surface water.
Look inside
the wash system.
See original dual-arm product images of the chassis cleaning, spray movement and drying functions.
Chassis & wheel cleaning
Lower-body cleaning hardware can be added to your wash program.
High-pressure spraying
Water jets and detergents provide brush-free cleaning. Match water quality and chemical dosing to the recommended settings.
Fan drying
The fan configuration sets the drying stage and the total electrical demand.
Your wash bay
and its utilities.
Check vehicle clearance, spray-system travel and water supply alongside the machine dimensions. Final installation drawings determine the required space.
| Equipment | Dual arm touchless car wash machine |
|---|---|
| Machine dimensions (L × W × H) | 7.6 × 3.6 × 3.1 m |
| Installation dimensions reference (L × W × H) | 8 × 4 × 3.1 m |
| Maximum vehicle reference (L × W × H) | 6.8 × 2.4 × 2.2 m |
| Suitable vehicle types | Sedans, SUVs, MPVs and 4×4 vehicles within clearance limits |
| Spray arms | 2 LED robotic spray arms |
| High-pressure pumps | 2 × Pinfl PT45 (Germany) |
| Drying blowers | 6 × 5.5 kW |
| Controller | Mitsubishi PLC (Japan) |
| Wash programs | 4 built-in modes; confirm program details |
| Wash cycle reference | 3–8 minutes per vehicle; program dependent |
| Water use reference | Around 150 L per vehicle; program dependent |
| Foam use | 20–150 mL per vehicle |
| Water wax use | 20–150 mL per vehicle |
| Electricity use reference | 1–1.5 kWh per vehicle |
| Power supply reference | 380 V, three phase, 45 kW |
| Remote monitoring | Included |
| System upgrades | Free |
| Frame | Hot-dipped galvanized steel |
| Service life | 10 years or more |
Published reference specifications. Final dimensions, utilities and configuration are fixed in the project drawings and quotation.
Before you
choose a dual-arm system.
Answers about clearance, wash capacity and installation.
How does a dual arm touchless car wash machine work?
Two spray arms coordinate water and cleaning-agent application around the parked vehicle. The selected program includes spraying, rinsing and drying.
How is the dual-arm format different from other touchless equipment?
This model has two robotic spray arms that clean at the same time. Cycle duration and throughput depend on the program, configuration and vehicle entry and exit.
What drying hardware does it use?
The published configuration includes six 5.5 kW air-drying blowers. Total electrical demand depends on the selected machine.
What vehicles can it wash?
It washes sedans, SUVs, MPVs and 4×4 vehicles up to 6.8 × 2.4 × 2.2 m. Check your own vehicles with mirrors and roof accessories against that size.
How much installation space is required?
The published machine dimensions are 7.6 × 3.6 × 3.1 m, with an 8 × 4 × 3.1 m installation reference. The final drawings add overhead clearance, spray-arm movement, maintenance access and approach and exit space.
What wash time and water use should I plan for?
The published references are 3–8 minutes and around 150 litres of water per vehicle. These depend on vehicle condition and the selected program. Allow for entry, positioning and exit when planning site capacity.
Can remote monitoring and payment options be included?
Remote monitoring is part of the published configuration. Payment, custom programs and remote assistance are available; the quotation lists what is included.
What should I send for a dual-arm quotation?
Send the installation country, usable bay dimensions, largest vehicles and expected daily volume. Include water, drainage and three-phase power details where available, plus preferred wash programs and operating options.
